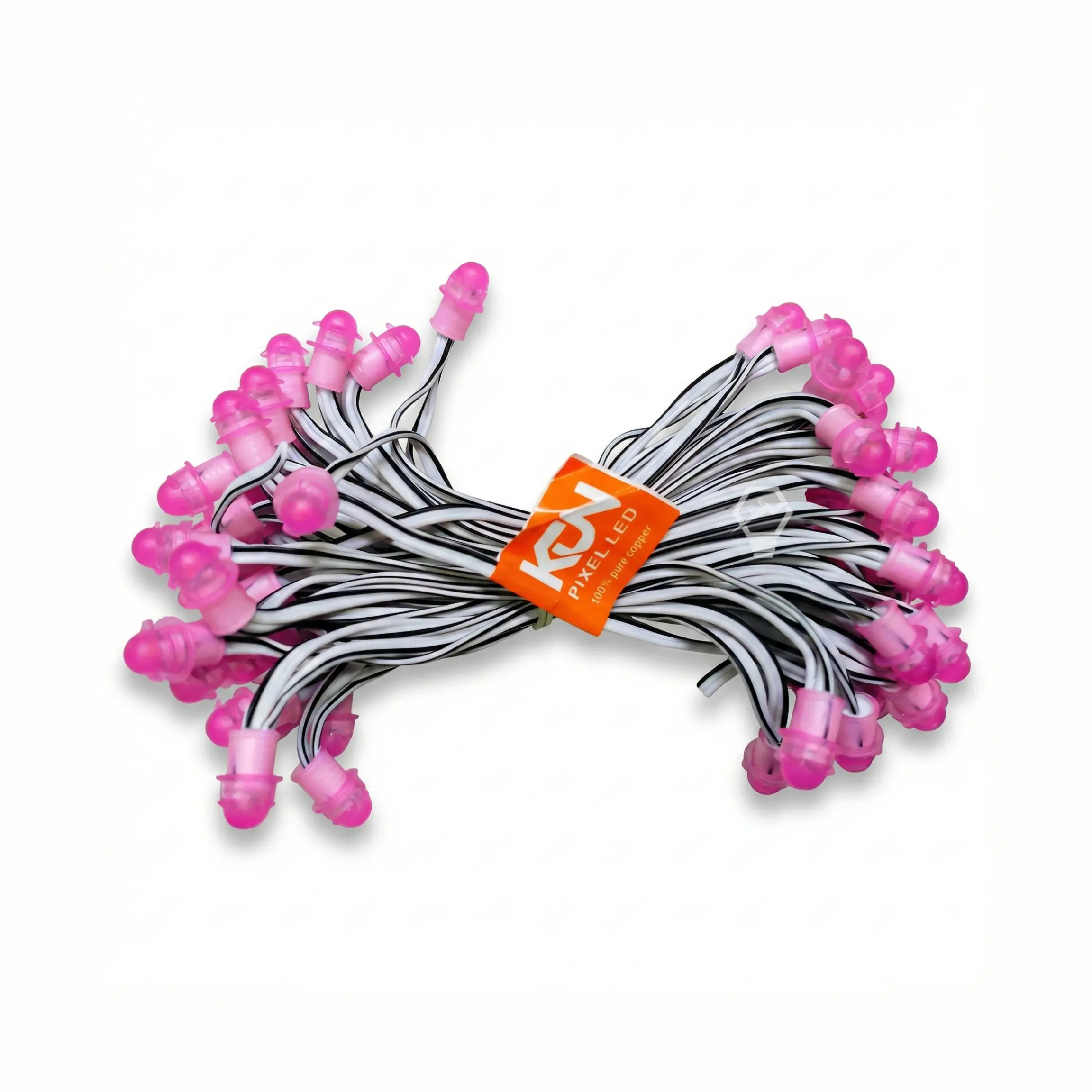

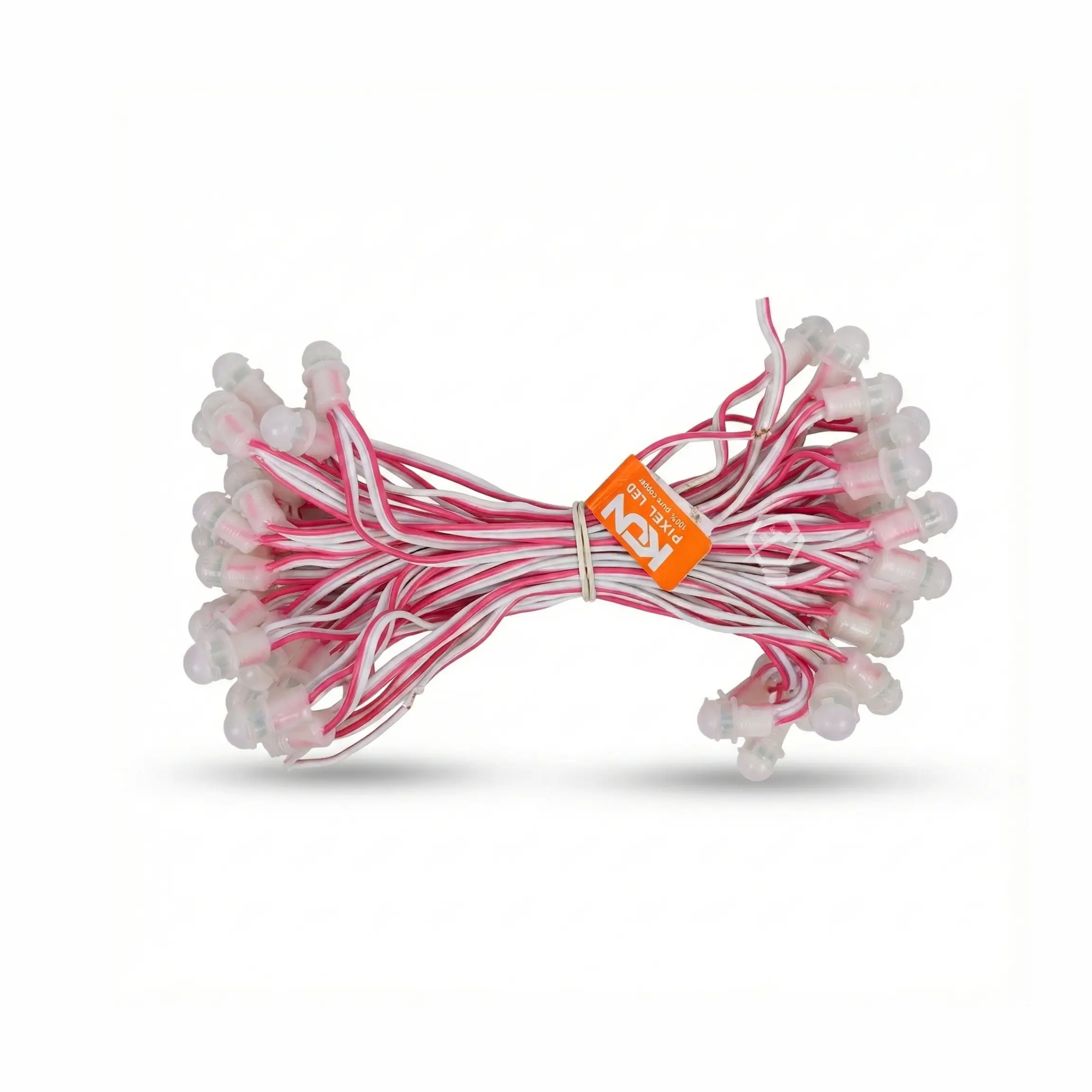

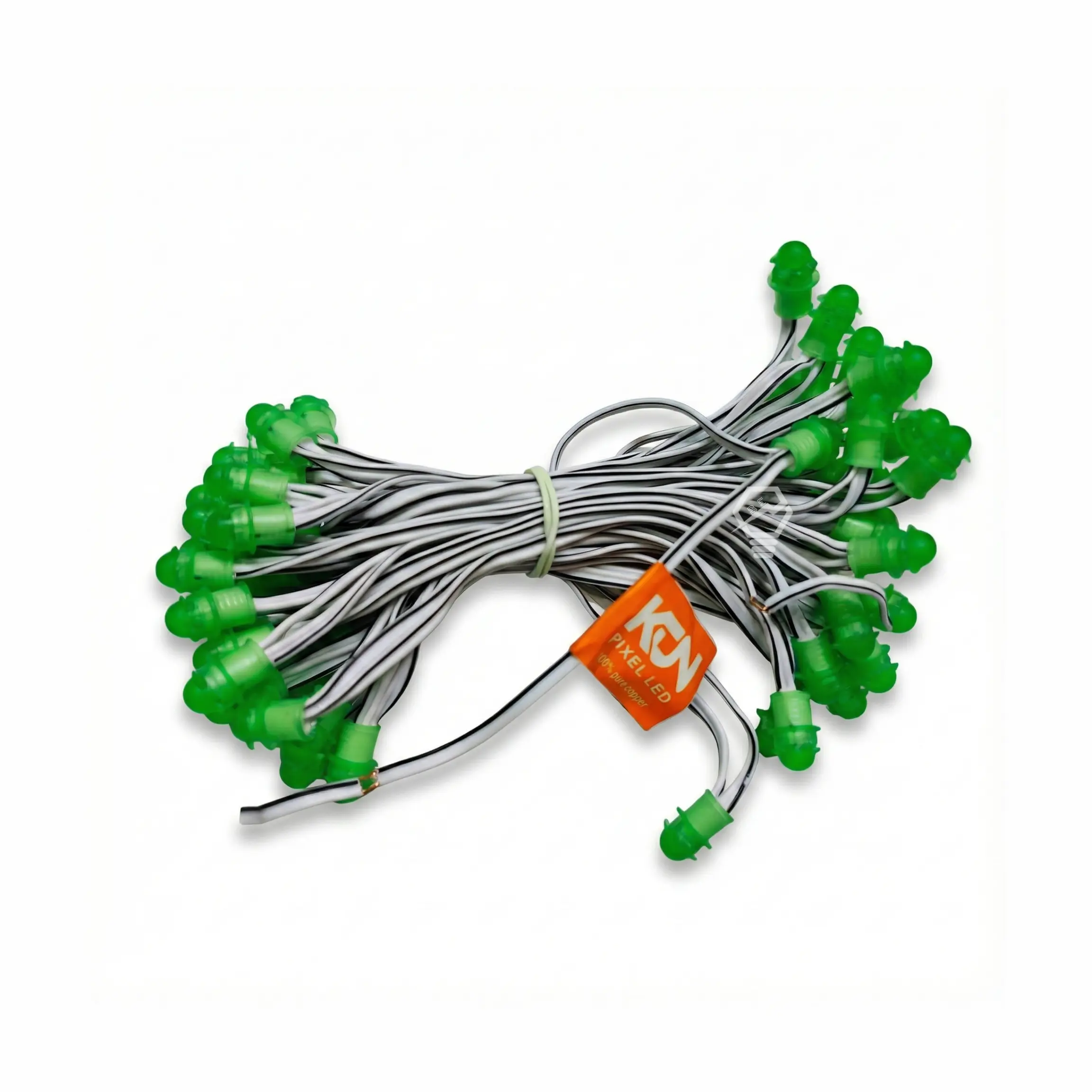

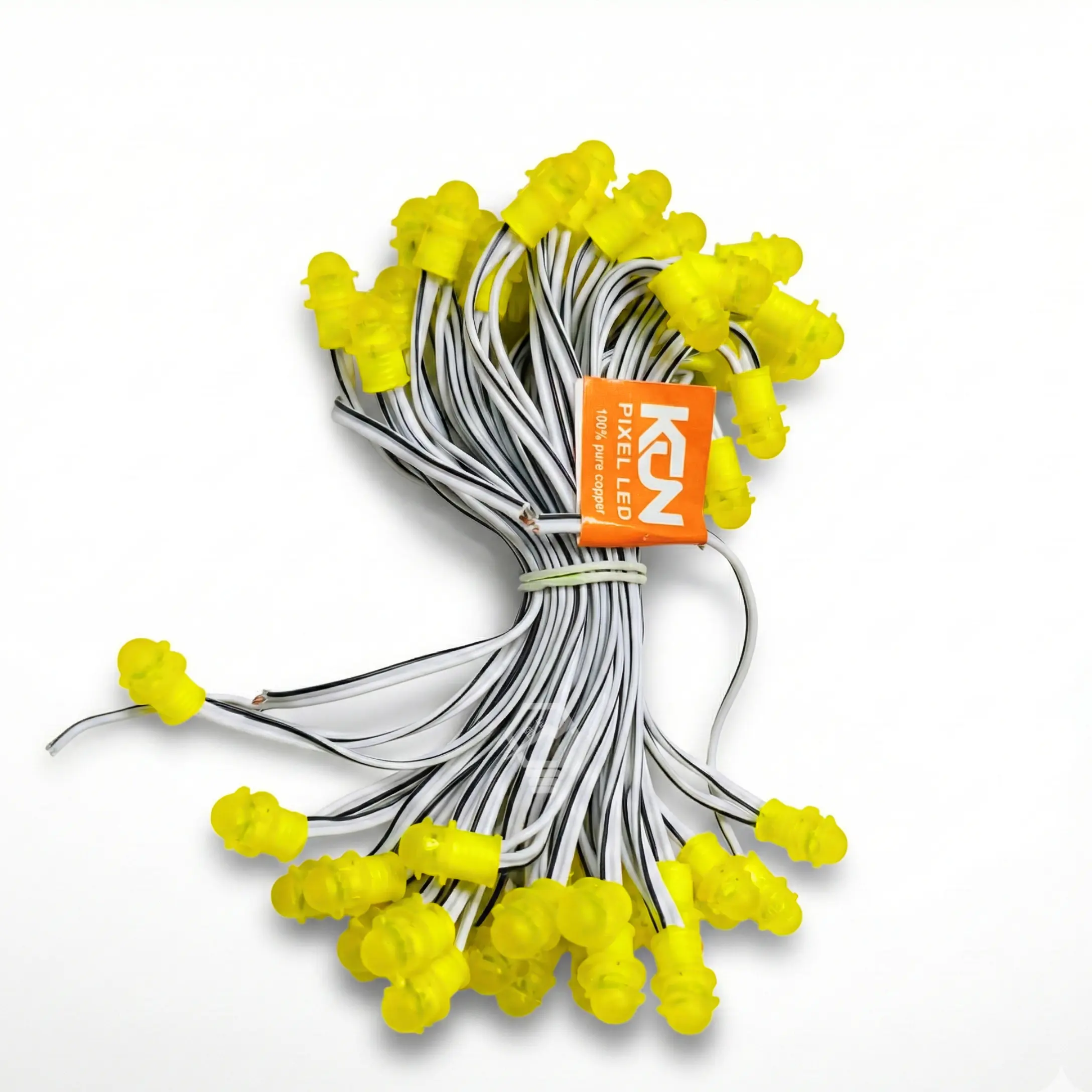

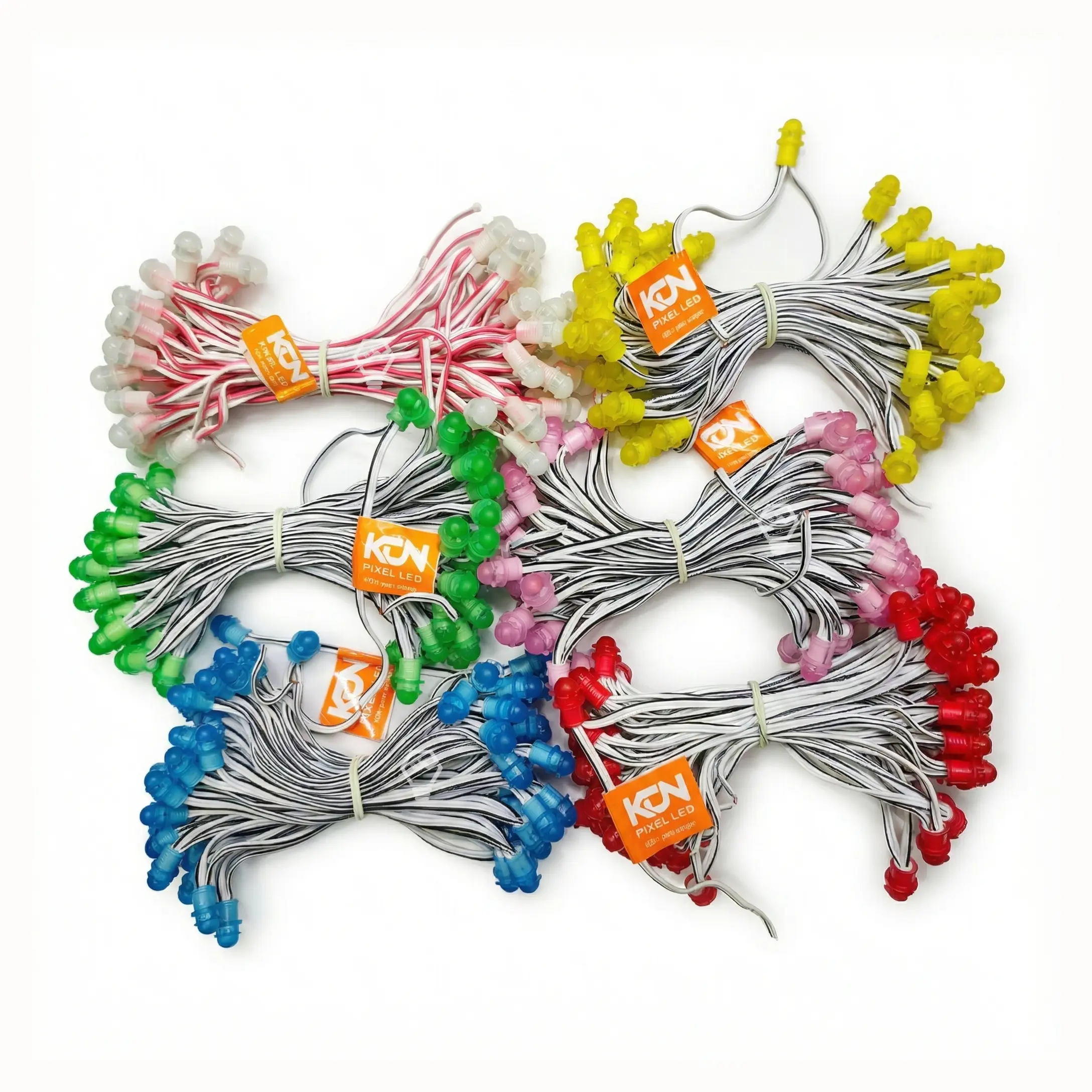

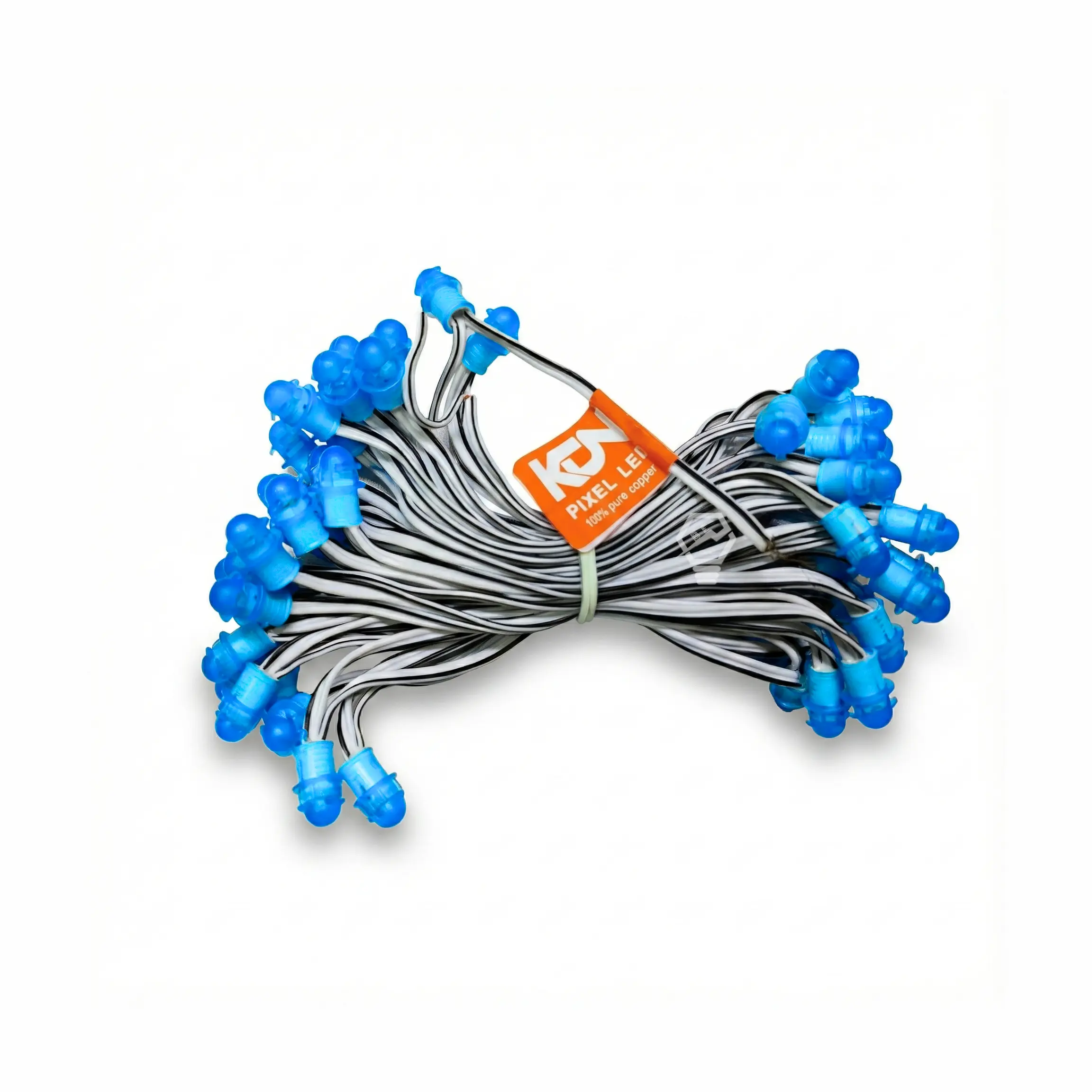

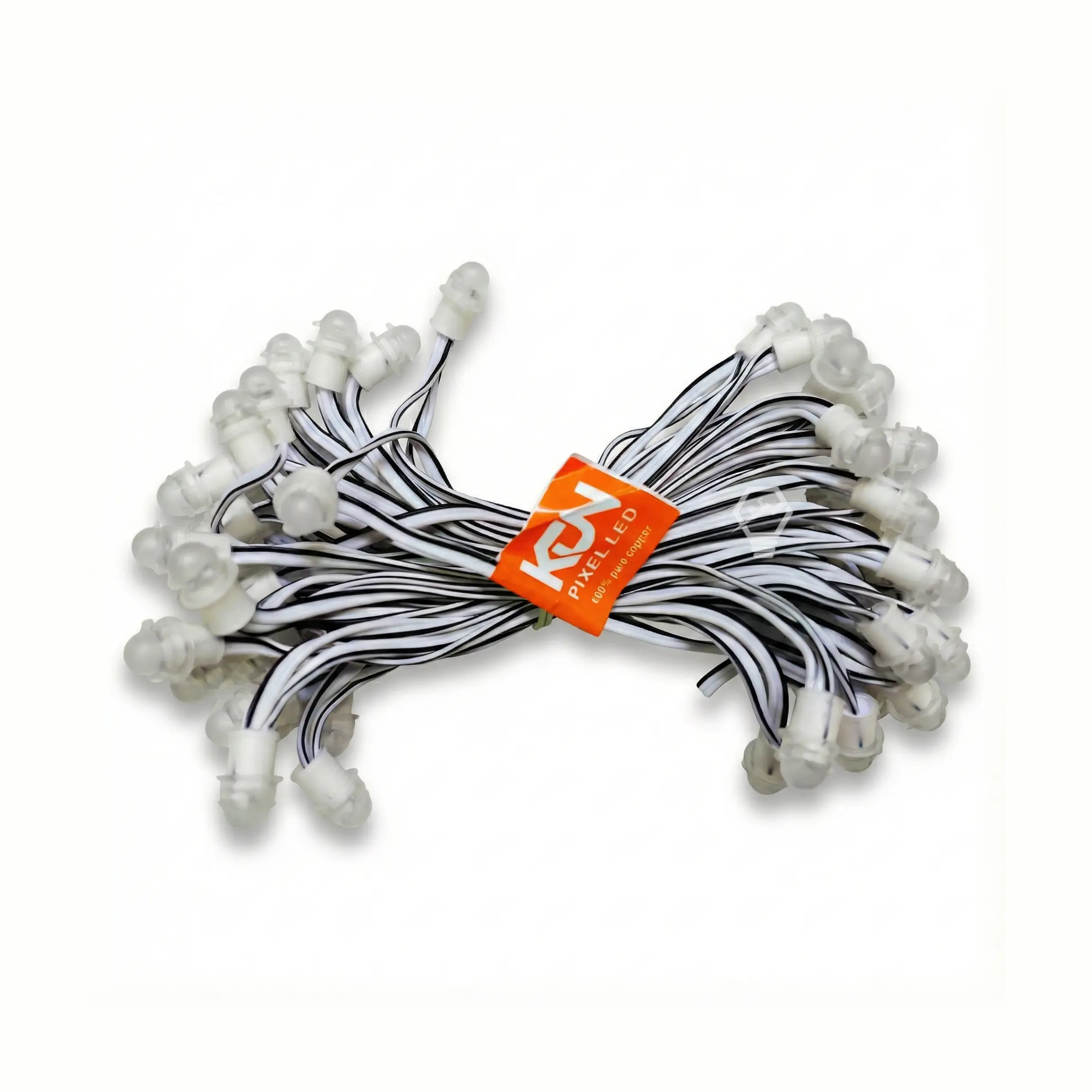

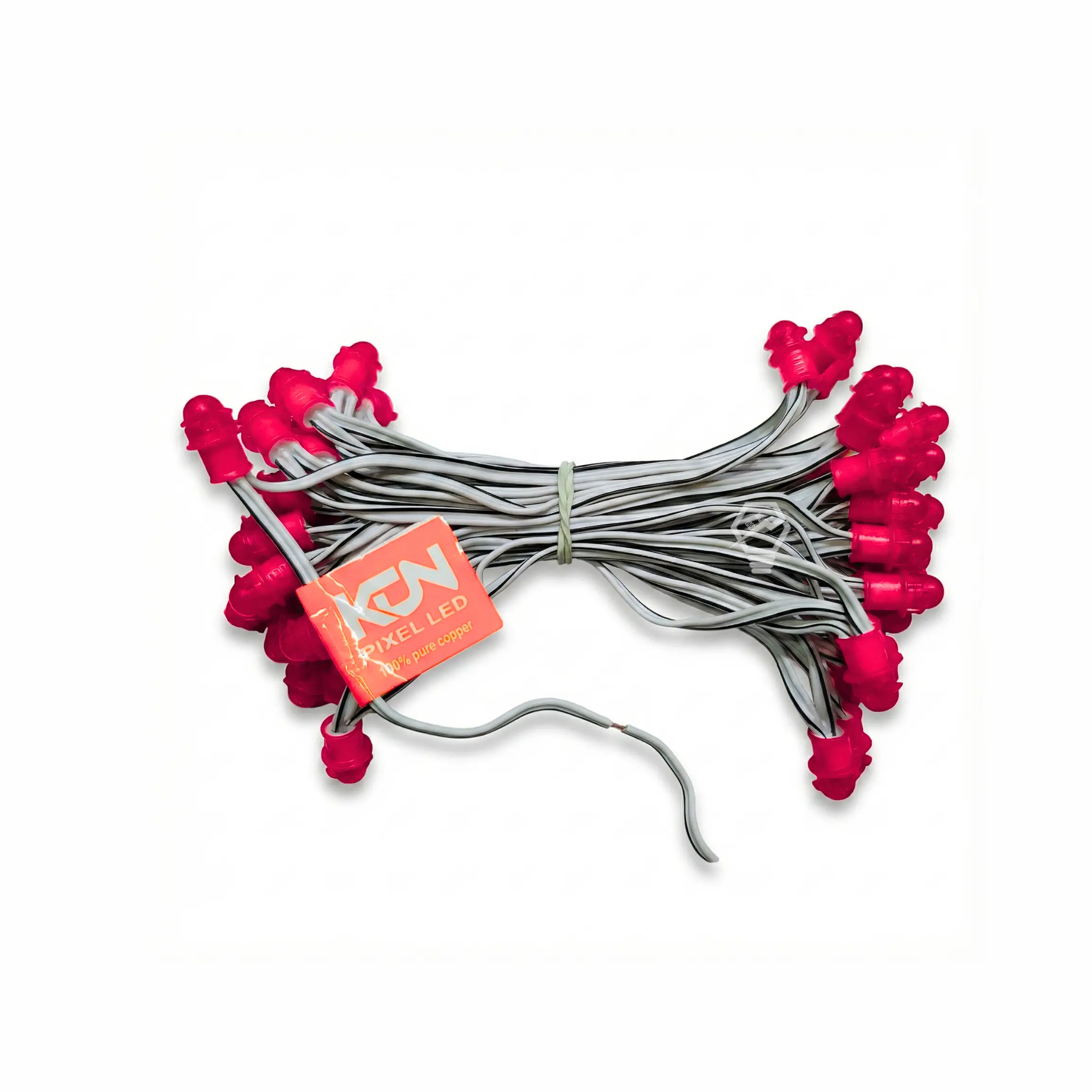

12V Copper Wire Single Color SMD Lights
| Weight | 0.1 kg |
|---|---|
| Color | White, Yellow, Blue, PINK, RGB, Warm White, Red, Green |
Achieve powerful, long-lasting illumination with the 12V Copper Wire Single Color SMD Pixel LED Series—engineered specifically for commercial sign boards, glow signs, pixel gates, and large-scale architectural lighting. Unlike traditional 5V LED pixels that suffer from voltage drop and dullness toward the end of the string, these 12V high-performance LEDs maintain uniform brightness from the first pixel to the last.
Built with 100% pure copper wiring, these LEDs deliver superior conductivity, lower heat generation, and exceptional durability—making them the trusted choice for professional fabricators, sign makers, and event lighting experts across India.
Why Choose 12V Copper Wire Pixel LEDs?
1. Zero Voltage Drop
The 12V input combined with high-conductivity copper wire allows long LED runs without dimming, ensuring consistent brightness on large sign boards and building outlines.
2. High-Intensity SMD LED Brightness
Premium SMD/DIP LED chips deliver sharp, vibrant illumination visible from long distances—ideal for commercial branding, backlit letters, and professional installations.
3. IP68 Waterproof – Built for Indian Weather
Each pixel is sealed in durable soft PVC, making it fully waterproof, dustproof, and heat-resistant—perfect for outdoor use in monsoons and extreme summer heat.
4. Standard 12mm Punch Hole Fit
The push-fit 12mm LED nodes easily slot into ACP sheets, acrylic letters, flex boards, CNC-cut metal frames, and 3D signage.
5. Installer-Friendly Wire Spacing
With 5-inch (12cm) center-to-center spacing, these LEDs provide optimal flexibility for:
-
3D letters
-
Curved fonts
-
Architectural borders
-
Large gate decorations
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | KDN (Original Series) |
| Input Voltage | 12V DC |
| Wire Material | 100% Pure Copper |
| LED Type | High-Power SMD / DIP |
| Color Options | Red, Green, Blue, White, Warm White, Pink, Yellow |
| Wire Spacing | 5 Inch / 12cm |
| Protection Grade | IP68 Waterproof |
| Punch Hole Size | 12mm Standard |
| LEDs Per String | 50 LEDs |
Application Areas
Signage & Commercial Branding
Perfect for:
-
3D Acrylic Letters
-
Glow Signs
-
Backlit Boards
-
Shop Name Boards
Event & Festival Decoration
Ideal for:
-
Pixel Gates
-
Wedding Entrances
-
Diwali & Navratri Lighting
Architectural Lighting
Used for:
-
Building Borders
-
Roof Highlights
-
Landscape Outlines
Power Supply Guide (SMPS Calculation)
Each pixel consumes approx 0.24W–0.30W
➡ 50 LED string = ~15W (1.25A)
Recommended SMPS Chart
| Total LEDs | Strings | Required Power | Recommended SMPS |
|---|---|---|---|
| 50 | 1 | 15W | 12V 2A Adapter |
| 500 | 10 | 150W | 12V 20A SMPS |
| 1,000 | 20 | 300W | 12V 30A–40A SMPS |
| 2,000 | 40 | 600W | 12V 60A SMPS |
| 5,000 | 100 | 1500W | 3 × 12V 60A SMPS |
Product FAQ
Q: Do I need a special power supply?
✔ Yes. Use a 12V DC SMPS. Do NOT connect to 220V AC or 5V supply.
Q: Can I cut the LED string?
✔ Yes. Cut between any two pixels to customize length.
Q: Is 12V better than 5V?
✔ For single-color static lighting, 12V is superior due to lower voltage drop and minimal power injection.
Q: Are the wires actually copper?
✔ Yes. This original KDN series uses 100% pure copper, not CCA (silver-coated aluminum).
💡 Pro Installer Tip:
For long installations (20+ strings), inject power every 10 strings for maximum brightness.
